Model No.
EC102-B400-C03 142-006-B-N00
Material No.
2000501012

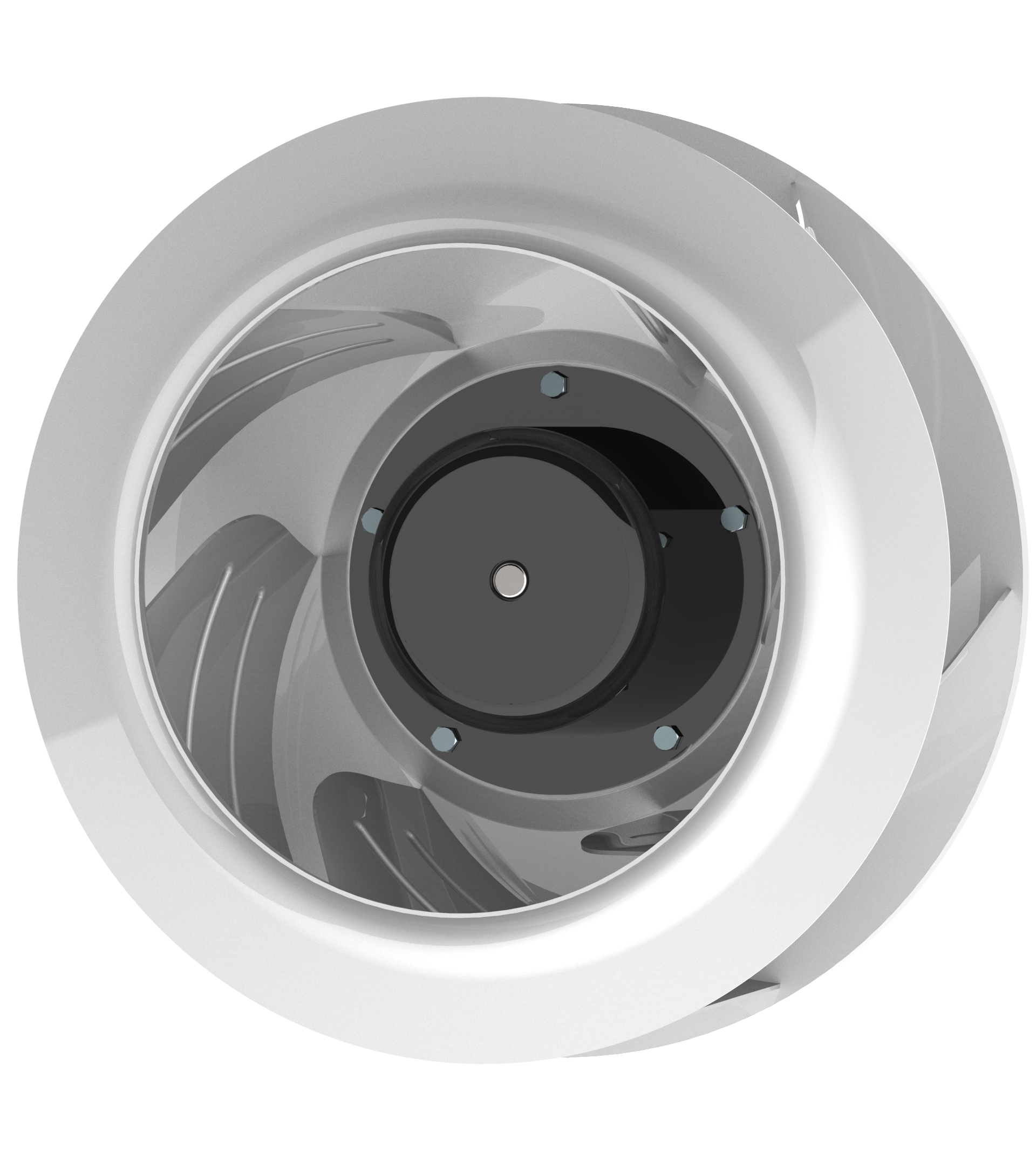

Fan type
Backward centrifugal fan
ErP data
Data according to Commission Regulation(EU) 327/2011 (prEN 17166)
| 1) Fan efficiency η at BEP | 58.1% |
| 1) Fan efficiency η required | 47.8% |
| 5) Variable speed drive | integrated |
| 2) Measurement category | A |
| 3) Efficiency category | static |
| 4) Efficiency grade N at BEP | 72.3 |
| 4) Efficiency grade N required | 62 |
| 9) Input power Pe at BEP | 0.443KW |
| 9) Volume flow rate qv at BEP | 2083m³/h |
| 9) Pressure difference Δp at BEP | 400Pa |
| 10) Fan speed rpm at BEP | 1519rpm |
| 11) Specific ratio | 1 |
| 7) Manufacturer's name and address | HANGZHOU DUNLI MOTOR FANS CO., LTD. No. 1 Dunli Road, Renhe Street, Yuhang District, Hangzhou, China |
| 8) Model identifier and codes | 2000501012 EC102-B400-C03 142-006-B-N00 |
| *This parameter is derived from the actual test results of the Dunli tooling matched with incomplete fans. |
