Model No.
EC137-A630-C33 070-05S-D-X00
Material No.
2000403349
Fan type

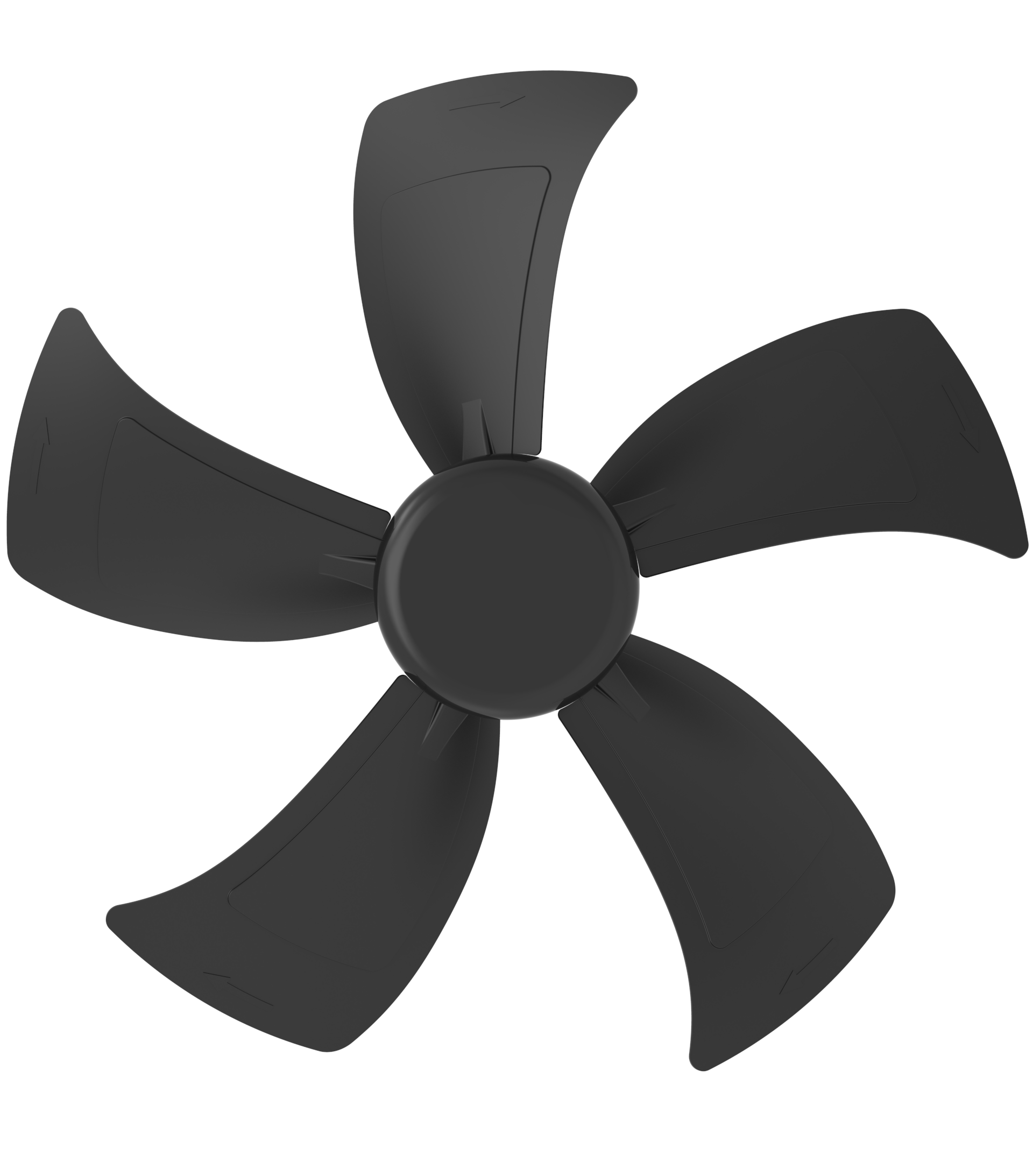

Axial Fan
ErP data
Data according to Commission Regulation(EU) 327/2011 (prEN 17166)
| 1) Fan efficiency η at BEP | 48% |
| 1) Fan efficiency η required | 34% |
| 5) Variable speed drive | integrated |
| 2) Measurement category | A |
| 3) Efficiency category | static |
| 4) Efficiency grade N at BEP | 54 |
| 4) Efficiency grade N required | 40 |
| 9) Input power Pe at BEP | 1.140KW |
| 9) Volume flow rate qv at BEP | 10097m³/h |
| 9) Pressure difference Δp at BEP | 180Pa |
| 10) Fan speed rpm at BEP | 1270rpm |
| 11) Specific ratio | 1 |
| 7) Manufacturer's name and address | HANGZHOU DUNLI MOTOR FANS CO., LTD. No. 1 Dunli Road, Renhe Street, Yuhang District, Hangzhou, China |
| 8) Model identifier and codes | 2000403349 EC137-A630-C33 070-05S-D-X00 |
| *This parameter is derived from the actual test results of the Dunli tooling matched with incomplete fans. |
