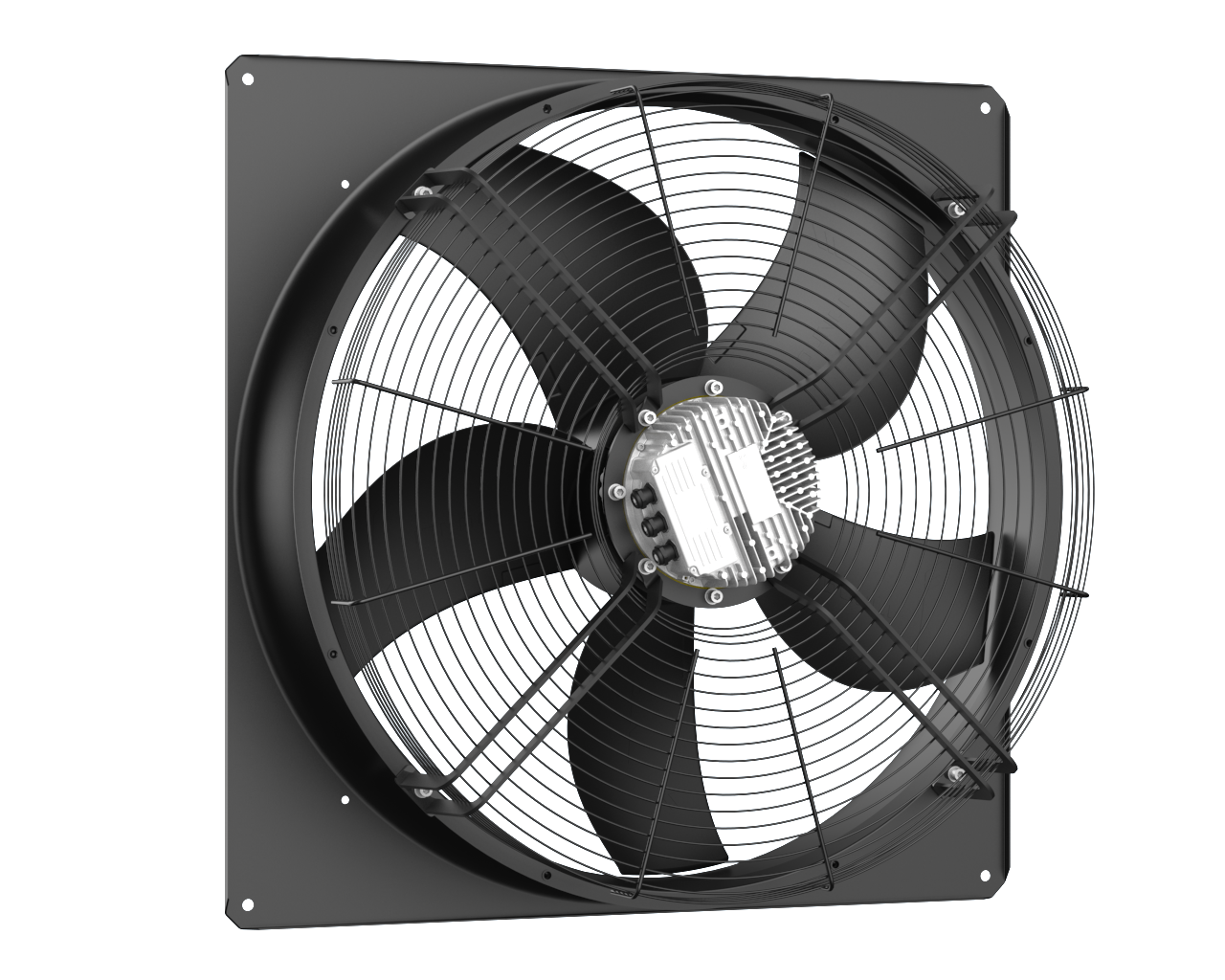

Model No.
EC180-A800-C05 088-05S-F-501
Material No.
2000402195
Fan type
Axial Fan
ErP data
Nominal data
Data according to Commission Regulation(EU) 2024/1834 (prEN 17166)
| a) Fan type | Axial fan |
| b) Fan efficiency η at BEP | 51.1% |
| b) Fan efficiency η required | 44.9% |
| c) Variable speed drive | integrated |
| d) Measurement category | A |
| e) Efficiency category | static |
| f) Efficiency grade N at BEP | 56.2 |
| f) Efficiency grade N required | 50 |
| g) Input power Pe at BEP | 3.248KW |
| g) Volume flow rate qv at BEP | 20397m³/h |
| g) Pressure difference Δp at BEP | 250Pa |
| h) Special characteristics | |
| i) DC voltage lower than 100 V | no |
| j) Significant elements supplied with the fan | |
| l) Fan speed rpm at BEP | 1232rpm |
| m) Specific ratio | 1 |
| n) Manufacturer's name and address | HANGZHOU DUNLI MOTOR FANS CO., LTD. No. 1 Dunli Road, Renhe Street, Yuhang District, Hangzhou, China |
| o) Model identifier and codes | 2000402195EC180-A800-C05 088-05S-F-501 |
| Phase | 3~ |
| Type of voltage | AC |
| Nominal voltage (V) | 400 |
| Nominal voltage range (V) | 380-480 |
| Frequency (Hz) | 50/60 |
| Type of data definition | ml |
| Speed (r/min) | 1300 |
| Power input (W) | 3400 |
| Current draw (A) | 5.2 |
| Max.back pressure (Pa) | 320 |
| Operating temperature range (℃) | -25~+60 |
