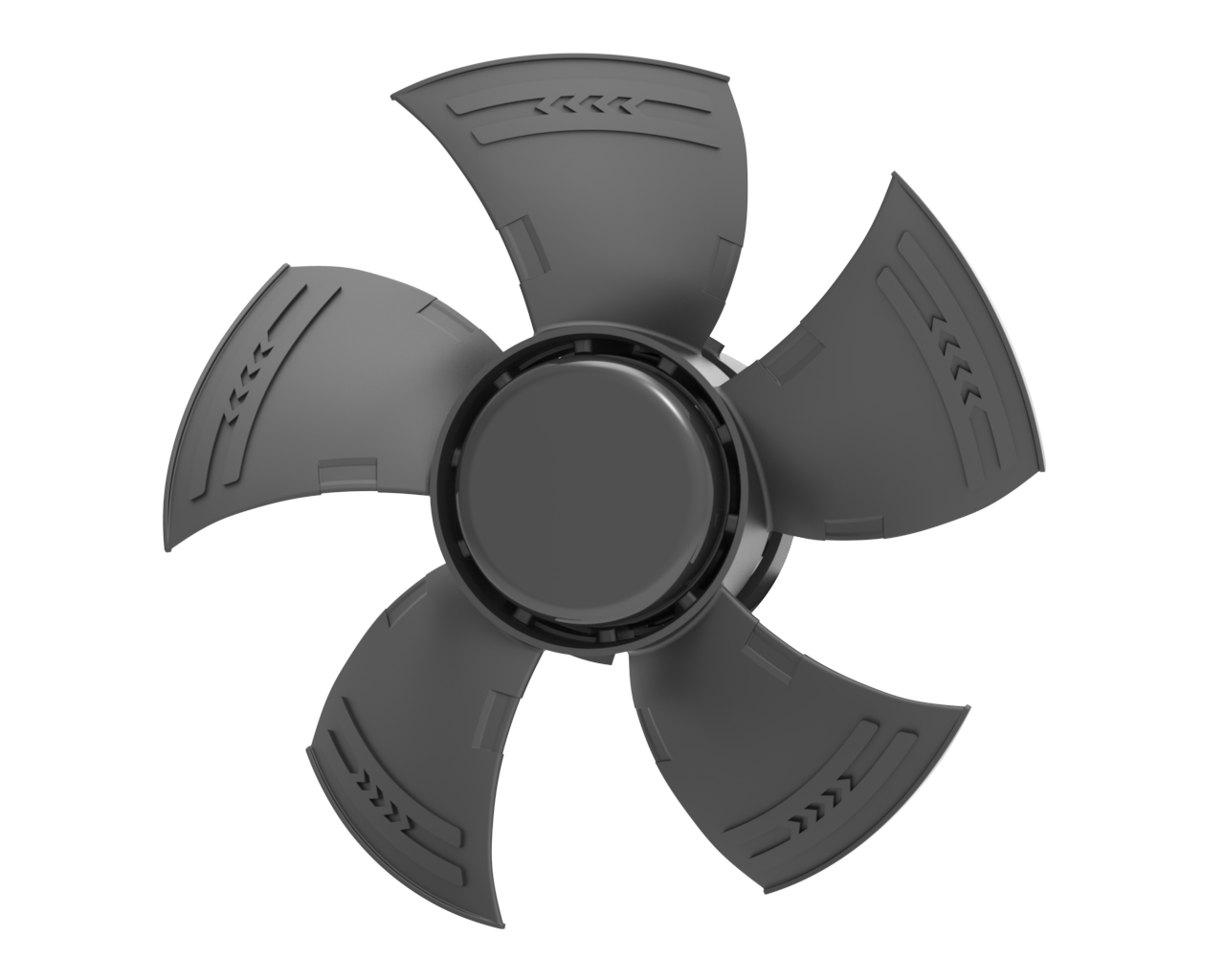

Model No.
DC92-A300-C40 060-05S-F-110
Material No.
2000403023
Fan type
Axial Fan
ErP data
Nominal data
Data according to Commission Regulation(EU) 2024/1834 (prEN 17166)
| a) Fan type | Axial fan |
| b) Fan efficiency η at BEP | 31% |
| b) Fan efficiency η required | 29.5% |
| c) Variable speed drive | integrated |
| d) Measurement category | A |
| e) Efficiency category | static |
| f) Efficiency grade N at BEP | 51.5 |
| f) Efficiency grade N required | 50 |
| g) Input power Pe at BEP | 0.111KW |
| g) Volume flow rate qv at BEP | 1607m³/h |
| g) Pressure difference Δp at BEP | 60Pa |
| h) Special characteristics | |
| i) DC voltage lower than 100 V | yes |
| j) Significant elements supplied with the fan | |
| l) Fan speed rpm at BEP | 1897rpm |
| m) Specific ratio | 1 |
| n) Manufacturer's name and address | HANGZHOU DUNLI MOTOR FANS CO., LTD. No. 1 Dunli Road, Renhe Street, Yuhang District, Hangzhou, China |
| o) Model identifier and codes | 2000403023DC92-A300-C40 060-05S-F-110 |
| Phase | / |
| Type of voltage | DC |
| Nominal voltage (V) | 48 |
| Nominal voltage range (V) | 36-57 |
| Frequency (Hz) | / |
| Type of data definition | ml |
| Speed (r/min) | 1820 |
| Power input (W) | 135 |
| Current draw (A) | 2.8 |
| Max.back pressure (Pa) | 100 |
| Operating temperature range (℃) | -20~+60 |
